CL238 RACING VERTICAL WITH SPRING GATE

Previous Product | Next Product
Product Description

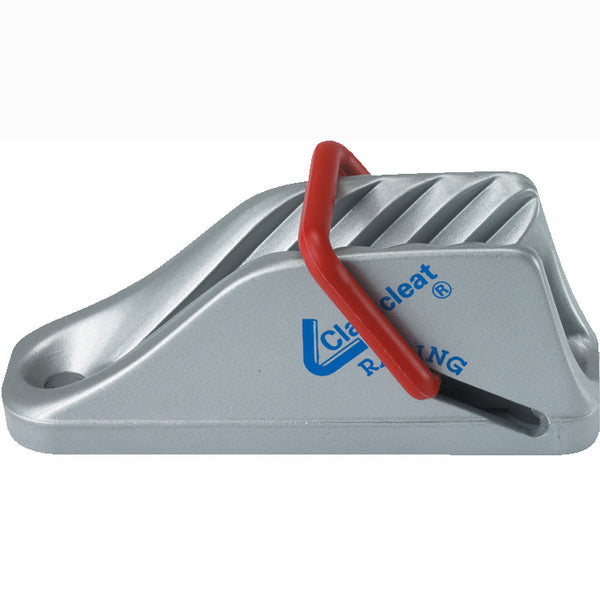

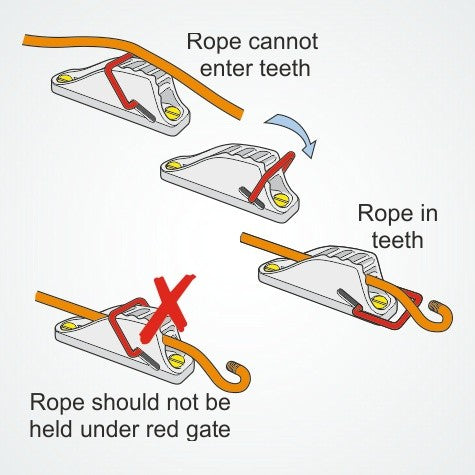

  • When using the Clamcleat® CL238, the red gate is flipped up by hand to keep the rope out of the alloy cleat and prevent unintentional entry of the rope into the cleat.

    - The CL238 is a modified CL219, so you will see "CL219" engraved on the bottom of the cleat..
    - Also available in Nylon - see CL237 below.
    - Spare red Gate available as PT238GATE - see below.
    - Usng a CL804 Tapered Pad can aid rope alignment.
    - A larger version of the CL238 is the CL240.


CL238 Racing Vertical with Spring Gate

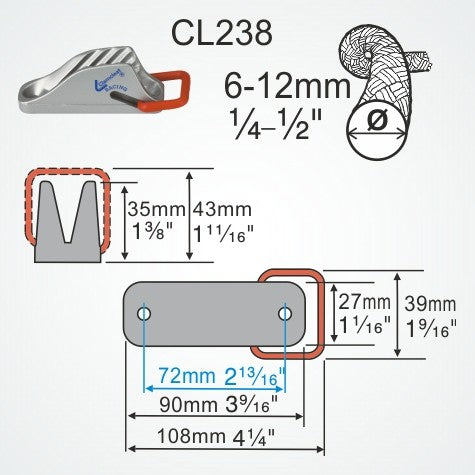

Technical Details   Metric Imperial
Rope Diameter 6 - 12mm 1/4 - 1/2"
Material Aluminium Aluminium
Hole Centres 72mm 2 27/32"
Length 91mm 3 9/16"
Width 40mm 1 9/16"
Height 33mm 1 5/16"
Bolt Size M6 1/4"
Screw Size 6.3 No 14
Weight 75gms 2.6oz

$27.50
